Defelsko PosiTector 200B Advanced Paint Depth Gauge


Price:
Sale price£3,249.00
Stock:
In stock

Pickup available at Newcastle

Usually ready in 2 hours

Description

Carbon Fibre Paint Depth Gauge

The DeFelsko PosiTector® 200B Advanced Body paint thickness gauge delivers highly accurate, non-destructive measurements of primer, colour, and lacquer on plastics, as well as the clear coat thickness on carbon fibre substrates.

For high-value and performance vehicles, knowing the exact paint depth before polishing or correction is essential. Paint thickness readings quickly reveal a vehicle’s history—highlighting variations that may indicate previous repairs, resprays, or refinishing work—helping you work safely and confidently.

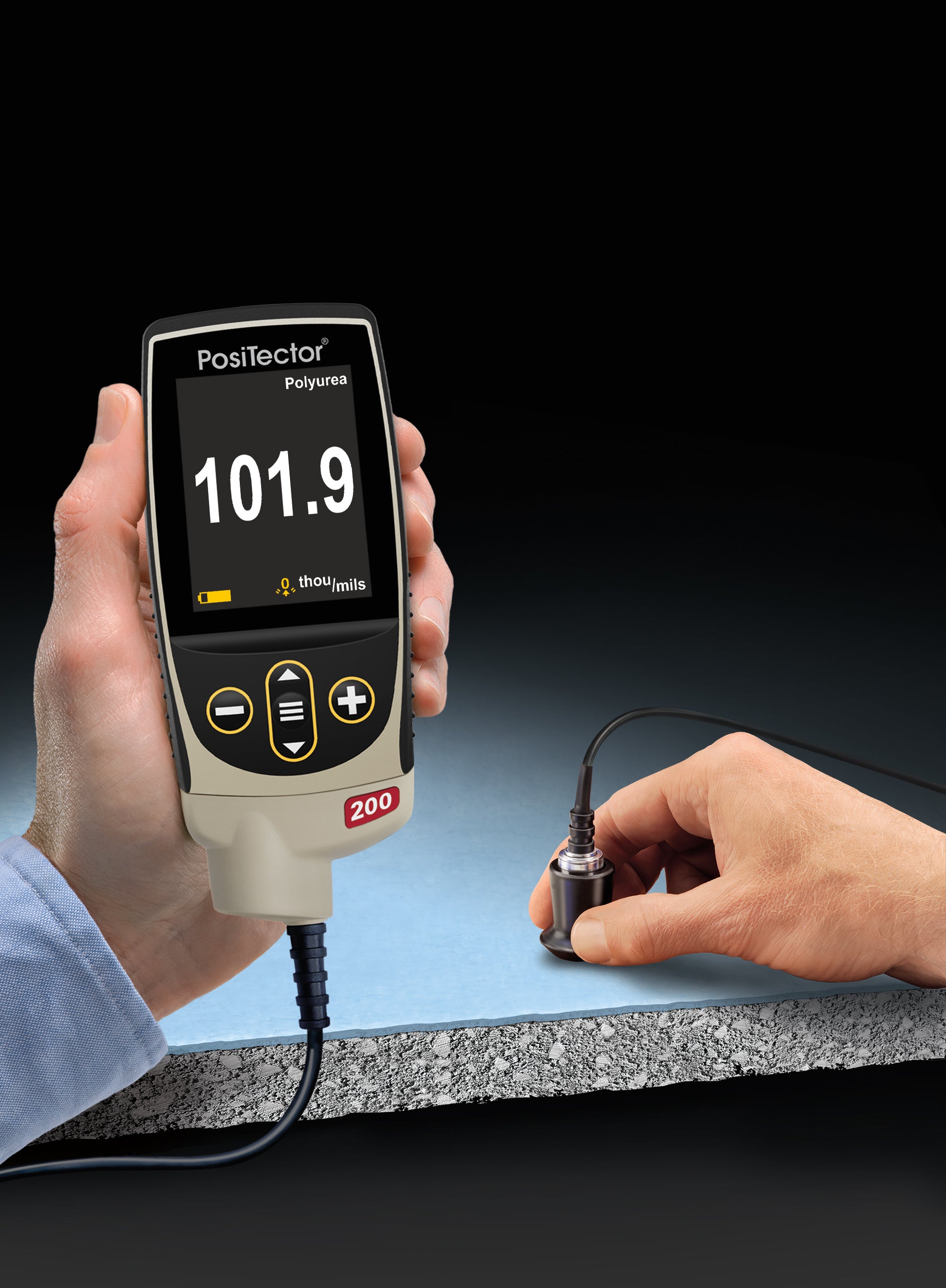

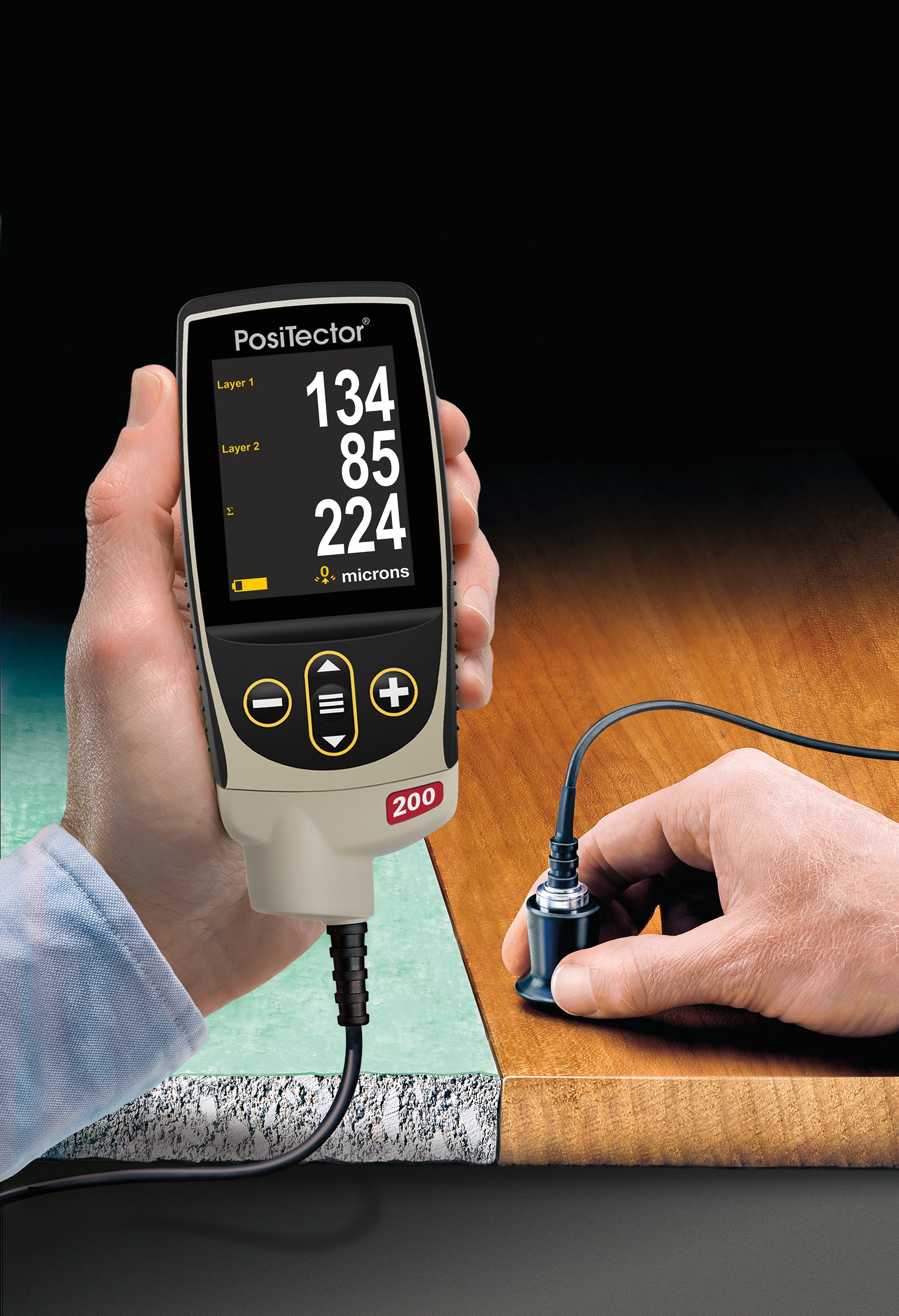

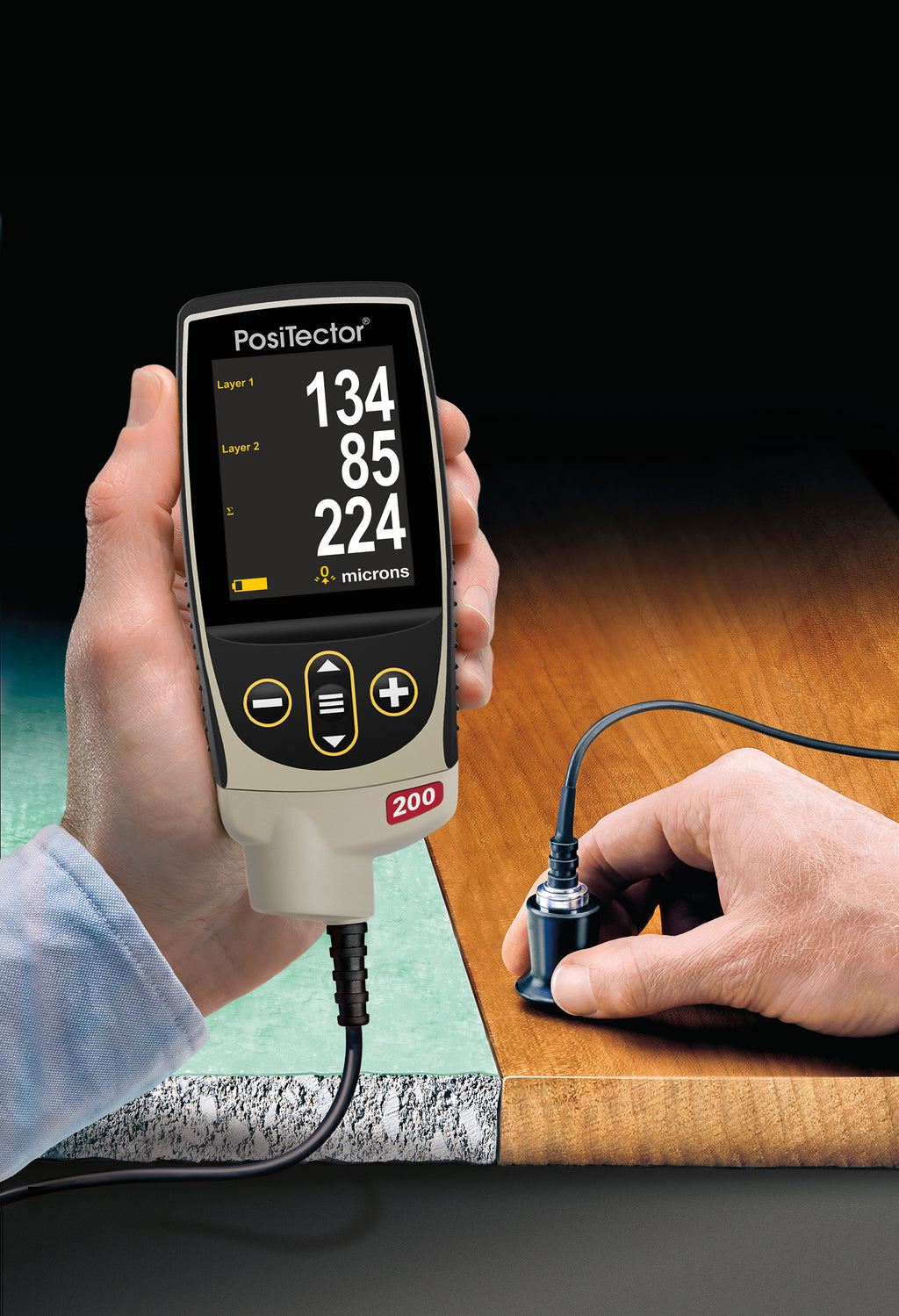

Utilising advanced ultrasonic technology, the PosiTector 200B measures coating thickness across a wide range of non-metal substrates without damaging the surface. It is suitable for applications including plastic, carbon fibre, wood, and concrete, with advanced visual models capable of displaying up to three distinct coating layers.


Technical Specifications

  • Suitable for polymer coatings on wood, plastic, carbon fibre, and similar substrates

  • Measurement range: 13 – 1,000 μm (0.5 – 40 mils)

  • Accuracy: ± (2 μm + 3% of reading)

  • Accuracy (imperial): ± (0.1 mils + 3% of reading)

  • Certified Thickness Standard: STDA3

  • Advanced Body

  • Regular Probe

  • Stores up to 250,000 readings in 1,000 batches and sub-batches

  • Prompted Batch Mode with on-screen text and image guidance

  • Scan modes: Normal / Statistics / Limited Count Average

  • WiFi connectivity

  • Bluetooth 4.0 technology

  • PosiTector mobile app support

  • Integration with third-party software, drones, ROVs, PLCs, and robotic systems

  • Bluetooth barcode scanner compatibility


Key Features

  • 60+ readings per minute, up to 90+ in FAST mode

  • Ready to use with no adjustments required for most applications

  • 2.8" impact-resistant colour touchscreen with redesigned keypad

  • On-gauge help at the touch of a button

  • IP65-rated weatherproof, dustproof, and water-resistant enclosure

  • Ergonomic design with durable rubberised grip

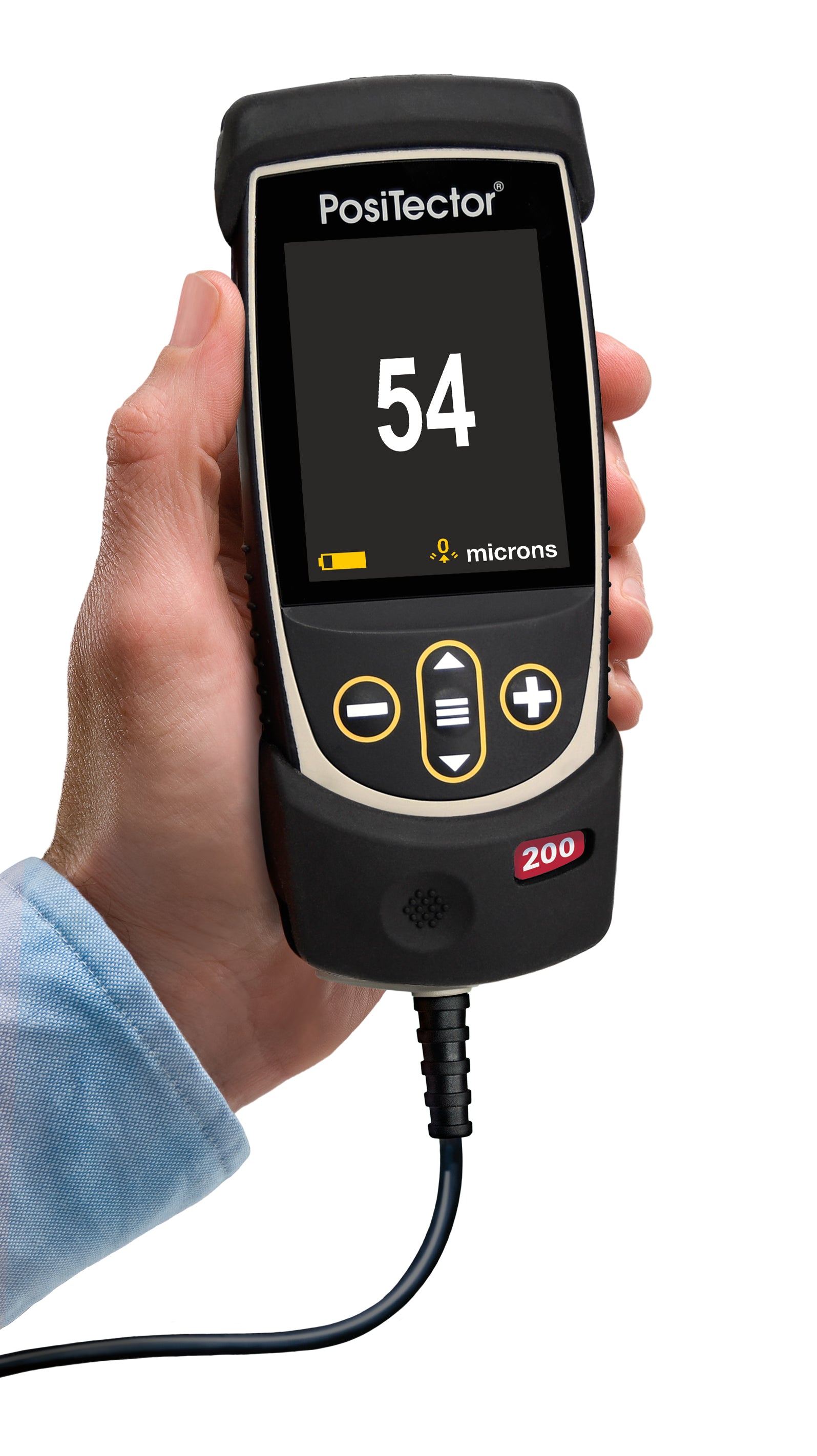

  • Wear-resistant probe tip and shock-absorbing rubber holster

  • Certificate of Calibration included, traceable to NIST or PTB

  • Built-in temperature compensation for consistent accuracy

  • Hi-RES mode for enhanced measurement resolution

  • Conforms to ISO and ASTM standards

  • Multiple calibration adjustment options and selectable display languages

  • Auto-rotating display with Flip Lock

  • Extended probe cables for underwater or remote measurements

  • Live statistics display: average, min/max, standard deviation, and reading count

  • Screen Capture feature storing up to 100 images

  • HiLo alarms with audible and visual alerts

  • Instant-on operation with up to 30% longer battery life

  • USB port for PC connection and continuous power supply

  • Date and time stamping on every stored measurement


The PosiTector 200B is a robust, precise, and highly versatile solution, offering professional-grade accuracy and confidence for automotive, industrial, and specialist coating measurement applications.

Size: Advanced Body 200B – Regular Probe
